The WasteMate 240 is the largest solar compacting smart waste bin and is powered completely self-sufficiently through a solar panel on top. This waste bin is very suitable for installation at busy locations with a peak load in a short time, for example on festival grounds or nearby football stadiums. The waste is compacted 5 to 8 times by the built-in baler. A built-in press compacts the waste as much as possible, and a sensor and GPS system together ensure efficient waste collection. Monitoring is done remotely by the CleanCityManager platform.

WasteMate 240

The solid construction of the wast compacting smart bin makes it highly resistant to vandalism. The throw-in hatch can be closed remotely for safety reasons.

Significant reduction in collection costs

Online monitoring via portal or app, anywhere and anytime

Reduction of CO2 emissions through efficient waste collection

Vandal-proof due to 2 mm metal housing

Insert without touching by means of a foot pedal

For standard 240 liter wheelie bin

about product

Material

Body and door

Powdercoated steel 2 mm

Hopper assembly

Stainless Steel 316 2 mm

Base

Stainless Steel 304 3 mm

Footpedal

Galvanized steel 8 mm

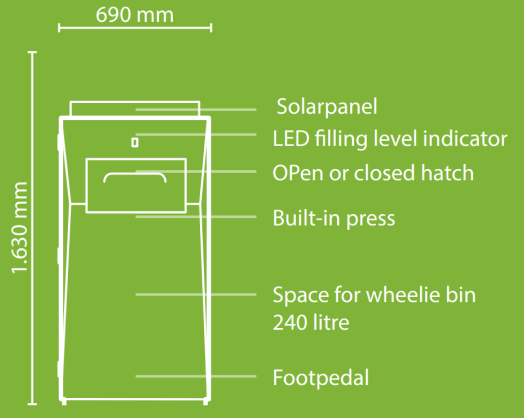

Dimensions

Height

1,630 mm

Width incl. hinge

690 mm

Depth

810 mm

Throw-in height

1,300 mm

Throw-in width

385 mm

Drop-in opening “open hatch”

385 x 140 mm

Drop-in opening “closed hatch”

385 x 125 mm

Weight without wheelie bin

185 kg

Content wheelie bin

240 litre

Technical specifications

Compactor type

Electric linear press

Battery type

12 V, 40 Ah gel

Number of batteries

1

System power

115 W

Compression ratio (waste)

> 5x (1.200 litre)

Compression ratio (fast food)

> 8x (1.920 litre)

Data connection

2G / 3G / 4G

Data portal

cleancitymanager.com

Solar panel capacity

30 W

Standard

Footpedal

Solar panel

LED filling level indicator

Fill level sensor

Keyless (RFID) door control

Blue LED light during the night

GPS positioning

Remote (un)lock control

Choice between closed and open hatch

Installation and lifting set

CleanCityManager, first year free

Soft close hopper system

Optional

1.8 liter ashtray set, stainless steel

Sound system to thank the user of the bin

Second LED filling level on back

Wheelie bin 240 litre HDPE, EN840-1

RAL colour of choice >10 pieces

RFID Collector and Lock pass

Application Programming Interface (API)

CleanCityManager, extension

Sticker or wrap for more visibility

Concrete foundation 600 x 600 x 200 mm, 172,8 kg

Galvanized foundation plate 985 x 960 x 12 mm, 90 kg

Anti-graffiti coating

Parts in stainless steel 304 of 316

Service and installation agreement

Closed hatch in combination with foot pedal

Additional options

CleanCityManager

CleanCityManager (CCM) is the software behind the WasteMates. It is a cloud-based platform which monitors the WasteMates remotely. Read more about the software That makes the WasteMates very smart.

Hatch with soft close system

Personalization

Would you like to provide the WasteMates with your own color, logo, image, message or sound? That's no problem. Read more about the options available. If you have another idea, we are very curious and would be happy to discuss this with you.
